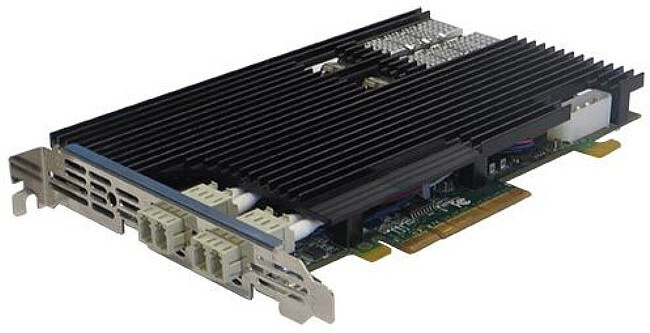

Сетевая карта Silicom PE210G2DBi9-SR-SD

Сетевая карта Silicom PE210G2DBi9-SR-SD максимальная дистанция передачи данных : 62.5um, 160MHz/Km 13m _ 62.5um, (OM1)200MHz/Km 16.5m 50um, 400MHz/Km 33m _ 50um, (OM2)500 MHz/Km 41m _ 50um, (OM3)2000MHz/Km 150m индикаторы : - по два светодиода на порт Link - Turns on link (yellow). ACT - Blinks on activity (green) - один двухцветный светодиода Bypass - Green on Bypass, Yellow on Disconnect, off on Normal. протоколы : FCC Part 15, Subpart B Class A Conducted Emissions Radiated Emissions CE EN 55022: 1998 Class A Amendments A1: 2000; A2: 2003 Conducted Emissions Radiated Emissions CE EN 55024: 1998 Amendments A1: 2000; A2: 2003 Immunity for ITE Amendment A1: 2001 CE EN 61000-3-2 2000, Class A Harmonic Current Emissions CE EN 61000 3-3 1995, Amendment A1: 2001 Voltage Fluctuations and Flicker CE IEC 6100-4-2: 1995 ESD Air Discharge 8kV. Contact Discharge 4kV. CE IEC 6100-4-3:1995 Radiated Immunity (80-1000Mhz), 3V/m 80% A.M. by 1kHz CE IEC 6100-4-4:1995 EFT/B: Immunity to electrical fast transients 1kV Power Leads, 0.5Kv Signals Leads CE IEC 6100-4-5:1995 Immunity to conductive surges COM Mode; 2kV, Dif. Mode 1kV CE IEC 6100-4-6:1996 Conducted immunity (0.15-80 MHz) 3VRMS 80% A.M. By 1kHz CE IEC 6100-4-11:1994 Voltage Dips and Short Interruptions V reduc >95%, 30% >95% Duration 0.5per, 25per, 250per
